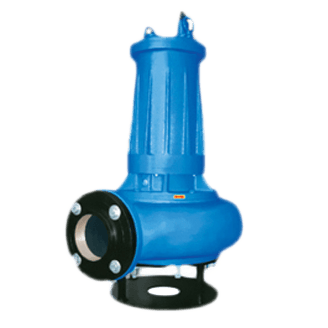

TYPE – SSSP SERIES
Submersible Sewage and Effluent Pump.
- These pumps are wet-installed type submersible motor pumps with non-clog impeller. pumps have a robust design for continuous duty operation for various slurry applications.
- Handling of all types of abrasive or aggressive waste water in water & waste water engineering as well as industry, especially untreated sewage containing long fibers & solid substances, fluids containing gas/air, as well as raw, activated & digested sludge; sea water desalination.
Specifications
Imp
Materials
- SS-316, SS-316 L, SS-304, SS-304L
- Duplex Stainless Steel
- Super Duplex Stainless Steel
- Cast Bronze, Cast Steel, Cast Iron
- Hastalloy - B & C, Alloy - 20 etc.....
Imp
Operating Range
- Capaicty : Up to 450 M3/hr
- Head : Up to 45 mtr
- Temperature : Up to 45°C
- HP : 0.75 to 50 (1 to 3 HP In Single Phase)
- rpm : Up to 2880
- Delivery Size : 32 mm to 200 mm
- Solid Size : 100 mm
- Connection : Dol, Star Delta, ATS
- Voltage and Phase : 415v, 3Phase / 215v,1 Phase upto 3HP
- Insulation/protection : ‘F’ Class / IP 68
- Motor : Two Pole Continues Duty Dry Type Squirrel Cage Induction Motor
- Cable : PVC Insulated Double Heated Copper Conductor Flexible Cable
- Mechanical Seal : Bi-directional Twin Mechanical Seal With Various Face Combination Looking to The Application.
- M.O.C. : C. I., C. S.
- Optional Parts : Impeller, Casing, Wearplate with Various M.O.C. Bronze, CF8, CF8M, CD4MCU etc...
Imp
Applications
- Muddy water transfer.
- Swimming pool.
- Dewatering of Ponds, Basement of huge building.
- Power Plant.
- Effluent transfer, ETP, STP, Waste Water treatment plant.
- Used in Hotel, Hospitals, Railways, Dairy, Chemical industry, Sugar, Steel, Cement, Food beverages etc...
