TYPE – SRP SERIES

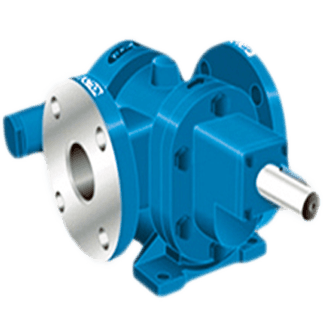

Multi Purpose Rotary Gear Pump.
  • Self priming pumps with five mtr. suction lifts.
  • Compact in size, low noise, high efficiency.
  • Easy maintenance, longer life, economical.
  • An inbuilt pressure relief valve.
  • Bush bearing with a heavy shaft.
  • Double helical gears to reduce axial thrust.
  • Continuous duty. Handle multiple liquids.
  • Unique design.
Image module

Specifications

Imp
Materials
  • SS-316, SS-316 L, SS-304, SS-304L
  • Duplex Stainless Steel
  • Super Duplex Stainless Steel
  • Cast Bronze, Cast Steel, Cast Iron
  • Hastalloy - B & C, Alloy - 20 etc.....
  • -
Imp
Operating Range
  • Capaicty : Up to 195 M3/hr
  • Head : Up to 100 mtr
  • Discharge Size : Dn 12 to 200 mm
  • Temperature : Up to 200°C
  • Speed : Up to 1500 rpm
  • Pressure : Up to 10 kg/cm2
Imp
Applications
  • To deliver a variety of Light & Viscous liquids such as Oil, Fats, Coal, Tar, Paint and Molasses.
  • Highly viscous or semi viscous liquids like Ammonia, Bleaches, Coal, Tar, Dyes, Fruits Juice, Gasoline, Glycerin, Glue and Grease.
  • Paints, Soap solution etc...
