Pump Series

TYPE – SDPP SERIES

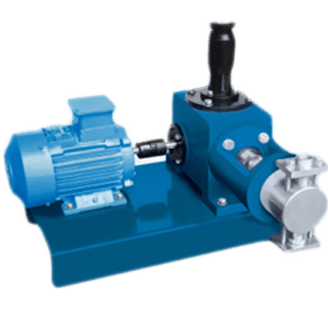

Plunger Type Dosing Pumps.
  • Precise metering devices.
  • Metering accuracy is almost independent of back pressure.
  • Plunger is hard chrome plated.
  • Flow rate is linear to stroke length variations.
  • Multiple head plunger pumps with common drive for mixing two or more liquids in a desired ratio.
  • Jacketed liquid heads can be heated by hot water/steam. ability to transfer & dose products which are highly viscous at room temperature.
  • External arrangement for flushing the gland packing to increase its life is also possible.
Image module

Specifications

Imp
Materials
  • SS-316, SS-316 L, SS-304, SS-304L
  • Duplex Stainless Steel
  • Super Duplex Stainless Steel
  • Cast Bronze, Cast Steel, Cast Iron
  • Hastalloy - B & C, Alloy - 20 etc.....
  • -
Imp
Operating Range
  • Capaicty : Minimum- 0-0.7 LPH, Maximum- 0-10,000 LPH
  • Pressure : Up to 400 kg/cm2
Imp
Applications
  • Polyelectrolyte dosing, Caustic dosing.
  • Boiler chemicals dosing, Pressure testing.
  • Dosing & transfer of viscous products like Cream
  • Syrup etc., Atomising of liquids etc.
